Mindbody Sync Requirements

Purpose:

This app is being created to upgrade from our original VB.net app (https://github.com/Text-Connects/UDF_Manage) and we need to provide the same functionality + new functionality.

Requirements:

Ability to validate users from the mobile apps
Ability to setup / configure videos for the ON DEMAND system
Ability to setup / configure all notifications in the system + send as needed
Ability to track users from MB into our App and back

info

Developer Account for Mindbody - MindBody Developer Account (in Passportal)

DO NOT CREATE A NEW DEVELOPER ACCOUNT!

danger

Current beta version will utilize SANDBOX instance ONLY

MB = Mindbody

Error Codes = See / Update the ERROR CODES tab in Gitbooks as you add errors

Sandbox Access

https://developers.mindbodyonline.com/ui/documentation/public-api#/http/mindbody-public-api-v6-0/introduction/using-the-sandbox Sandbox Documentation

To access the sandbox, use the following steps:

Go to the MindBody Client Launch site
Type in your Site ID or site name into the search bar and click search. The Site ID can be found in Passportal under MindBody Sandbox Access.
Select the API Sandbox Site. This should take you to a login page.
Type in the email/username and password. These can also be found in Passportal under MindBody Sandbox Access.

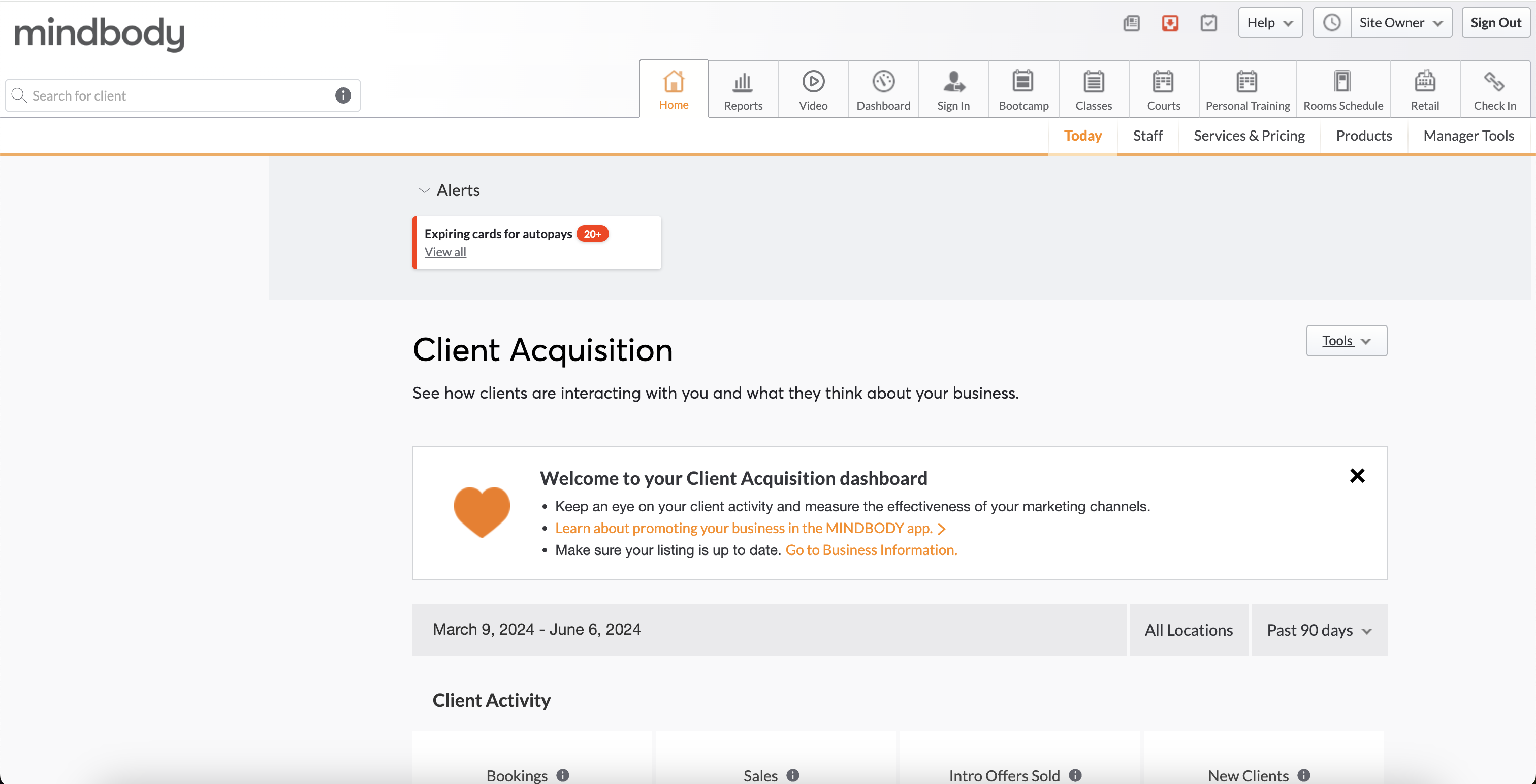

Click login. This will take you to the sandbox site's dashboard and you may explore from there. The image below is the site you should be taken to.

Development Setup - API Authentication

Utilizing the SANDBOX, enable the authentication and build a simple node function you can call that injects all the required header items into your fetch.

API_KEY = ENV Value
AUTHORIZATION = ENV VALUE
SiteID = ENV VALUE
App Name = 'THE U MOBILE APP'

ENV Initial Setup

MB_API_KEY=1234
MB_AUTHORIZATION=1234
MB_SITE_ID=1234
MB_APP_NAME="THE U MOBILE APP"

https://developers.mindbodyonline.com/ui/documentation/public-api#/http/mindbody-public-api-v6-0/authentication/api-keys API AUTHENICATION

After gaining access to the API, you will then need to build a function that can return a staff (user) token, these tokens are required to actually work with the API in MB. They should be easily generated using a function that any part of the app can call

https://developers.mindbodyonline.com/ui/documentation/public-api#/http/api-endpoints/user-token/issue-token

Express Endpoints for dev - (testing endpoints)

GET /dev/validate-auth

Response

title="200"

{
  "TokenType": "TokenType2",
  "AccessToken": "12345", (ONLY SHOW THE LAST 4 DIGITS)
  "Expires": "2016-03-13T12:52:32.123Z",
  "User": {
    "Id": 116,
    "FirstName": "FirstName8",
    "LastName": "LastName2",
    "Type": "Type6"
  }
}

title="500"

{
  "error": "MB ERROR MESSAGE HERE"
}

QA Requirements

Access the /dev/validate-auth endpoint and get back a 200 response.
Change the ENV so that you have an invalid login, then try /dev/validate-auth again and you should get a 500 error with the message associated

Requirement 1 - Client Details

To manage Mindbody Client data, we must download a list of all clients in the MINDBODY system.

The MB Client data set is used in the app to manage authentication and validation of client access rights to the Video On Demand System. We need to sync all data with our internal database.

Initial Database Layout

_id SEQUENCE (internal db id)
emailAddress varchar(255)
firstName varchar(255)
lastName varchar(255)
mbClientId varchar(255) - Mindbody Client ID
mbStatus varchar(50) - Mindbody Client Status String
lastAttendedClass timestamp
vodAccessLevel int4

Get Clients from MB

https://developers.mindbodyonline.com/ui/documentation/public-api#/http/api-endpoints/client/get-clients

Data Sync Endpoint

GET /api/sync/clients

Calling this endpoint will kick off a client data sync, which will go to MB and find all clients, then download them into the database (update or insert depending on if they exist - use both the MB Client ID field and the email address fields as a way to find records to update).

Note - some clients may exist IN the database but not in MB to start due to the app authentication system and the possibility of a new "GUEST" user.

Response

title="200"

{
  "clientsFound": 100, - Number Returned by Mindbody after going through all pages
  "clientsStored": 100, - Number stored in database via update or insert
  "pages": 4 - number of pages MindBody returned
}

title="500"

{
  "error": "MB ERROR MESSAGE HERE"
}

QA Requirements

Calling the /api/sync/clients endpoint will return the number of clients in the MB instance and the number of pages should equal the number of clients, divided by the number of clients per page (dev to note in asana description and below in GITBOOK)
Calling the /api/sync/clients endpoint with invalid credentials should generate the 500 error message

CLIENTS_PER_PAGE: ________

Requirement 2 : Contract Details

To maintain the status of clients, we must sync all the contract details for a specific client. There are two ways we will handle this

Method 1 - Scheduled Weekly Sync

Method 2 - On Demand Single Client Sync

Method 2 is used by the Customer Service team to update a Client that may have lost access to VOD Premium or new clients that are missed with the new sync. Method 2 can also be called by our system on LOGIN if a customer does not have a MB ID in the database, letting us run a one time system update for that customer

Weekly Sync - Manually Call Function

GET /api/sync/contracts

Syncing contracts with clients to store in the database

Response

title="200"

{
  "clientsSynced": 100, - Number of clients that have their contract data synced
  "clientsNotSynced": 100, - Number of clients without any contract details
  "errors": [] - array of any errors during processing
}

title="500"

{
  "error": "MB ERROR MESSAGE HERE"
}

On Demand Single Client Sync

GET /api/sync/contracts/:mbClientId

Syncs with dataset and validates 1 client on demand.
Note, this endpoint will be updated to include authenication from the app layer to call and run from the UI.

Example of current call used by client - https://udf-server.txtcon.io/validateContracts.aspx?mbid=100003381

Response

title="200"

{
  "vodAccessLevel": 1, - Access Level as determined by system
  "vodAccess": true, - If any access to VOD provided, show TRUE - will be used for UI
  "mbContracts" : [], - array of all MB Contracts
  "errors": [] - array of any errors during processing
}

title="404"

{
  "notFound": true
}

title="500"

{
  "error": "MB ERROR MESSAGE HERE"
}

QA Requirements

Ability to call the Method 1 endpoint and see that the system is updating items
Abilty to call Method 2 with a predefined MB ID for Allowed VOD and one that is NOT allowed (dev to add to ASANA task)
When changing access tokens, the system should show an error
When changing the MB ID to 100000, it should throw a NOT FOUND user error

FUTURE DETAILS BELOW

VOD Access Level Database

id SEQUENCE (internal db id)
vodAccessLevelName varchar(255)
