Computer Configuration

NODE: 14 LTS (do not use 16)

Github Repos:

Primary REPO : https://github.com/Text-Connects/udf-cordova-test

Electron (WIN/MAC Desktops) : https://github.com/Text-Connects/udf-electron

Setup Dev Environment (App Build)

  1. Clone Primary Repo
  2. Verify Node 14 LTS
  3. Run Global NPM Commands
npm install -g cordova

npm install -g electron

npm install -g node-gyp

npm install

4. Build out the different version

<pre class="language-bash">
   <code class="lang-bash">
      <strong>cordova platform add ios</strong>
      </strong><strong>cordova platform add android
      </strong><strong>cordova platform add browser
   </code>
</pre>

info​

NOTE: PC required for Electron / PC Build, but cannot run iOS platform build

If you have issues, run the following command PC ONLY
cordova platform rm ios

5. Run in a browser

cordova run browser

info​

Could not load API error - remove the build and add again to fix

cordova platform rm browser
cordova platform add browser
cordova run browser

Build for Browser​

  1. Run up to step 4 above and make sure the platform "browser" is added
  2. Run the cordova build for "browser"
gulp compile-sass && cordova build browser
  1. Open another VS Code window with the UDF-Electron Github Repo
    https://github.com/Text-Connects/udf-electron
  2. Copy the files in WWW from the UDF github into the APP folder on the UDF-Electron Github Repo
  3. Increase the build version in the UDF-Electron/package.json file
  4. Make sure you have the right version of node (14) and also NPM Install
nvm use 14

npm install
  1. Validate your build is working by running
npm run start
  1. Once done testing, run the following command to push to the electron server
npm run release

Setup / Notes for Electron Release​

Requirements

Python2
Update dmg builder node package
Github Token
  1. Setup Python2 on your M1 Mac - in terminal
##Install PYENV

brew install pyenv

## Initialize PYENV in your terminal window

pyenv init

## Install Pythonv2

pyenv install 2.7.18

## Set to use 2.7.18

pyenv local 2.7.18

## Determine the location of Python for use in the next step

pyenv which python

COPY THE Whole directory link for use in the next step
  1. Update DMG Builder
    1. Navigate to the node_modules / dmg-builder / out / dmg.js
    2. Line 261 - replace the /usr/bin/python with the path you copied from the step above
    3. Hit Save
  2. Generate a Github Token
    1. Open Github and Tokens for your account - https://github.com/settings/tokens

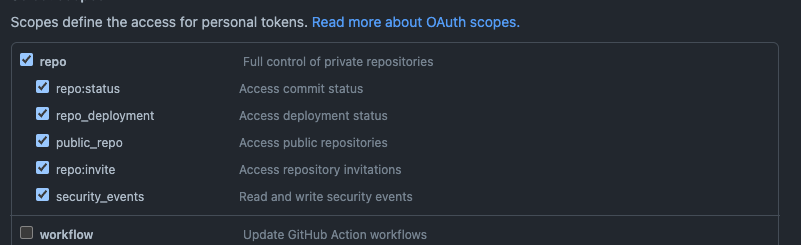

    2. create a new token with the scopes shown in the screenshot below
    3. Copy the token and paste in the package.json file on the RELEASE line where gh_token= is
